Name: 4.25" x 3.37" Fiber Optic Backlight
SKU: 39-826
Price: £841.50

4.25" x 3.37" Fiber Optic Backlight

4.25" x 3.37" Fiber Optic Backlight, #39-826

Stock #39-826 3-4 days

- +

£841^.50

Qty 1+
£841.50

Volume Pricing
Request Quote

Prices shown are exclusive of VAT/local taxes

+ Add to Saved List
Create an account or log in to access saved list

Compare

Note: This item requires accessories for use | Learn More

Specifications

General

Packing Fraction (%):

83.00

Type of Illumination:

Fiber Optic Light Guide

Compatible Light Guide Adapter:

SX: #38-946
MX: #66-908

Geometry:

Backlight

Physical & Mechanical Properties

Length (inches):

Fiber: 48

Construction:

Black Anodized Aluminum Housing

Optical Properties

Acceptance Angle (°):

68.00

Numerical Aperture NA:

0.55

Fiber Diameter (μm):

50.00

Transmission Loss:

10% per Feet @ 600nm

Wavelength Range (nm):

400 - 2000

Regulatory Compliance

Reach 174:

Compliant

RoHS:

Compliant

Certificate of Conformance:

View

Product Details

Light Guide Adapters are required to mate the low profile Fiber Optic Line Lights with fiber optic illuminators.

High Contrast, Silhouetted Images
Highly Diffuse, Even Light Distribution
Ideal for Line Scan Camera Applications
Used in 2D Vision Systems

Backlighting is a machine vision lighting method that provides a high contrast silhouette of a part or part segment. The object appears black against a uniform white background. Backlights can also be used with color filters, placed at the illuminator input end, to improve the contrast of colored components. Area backlights work well with 2D vision systems. Light guide adapters needed to mate with fiber optic illuminators.

Technical Information

Accessories

Note: Compatible accessories for individual stock numbers may vary. If unsure about which accessories work with your products, please contact us here.

Title	Stock Number	Price	Buy

0.565" ID, Fiber Optic Adapter SX-10	#38-946	39.10 £39.10 Request Quote	3-4 days ×
0.565" ID Fiber Optic Adapter MX-10	#66-908	34.00 £34.00 Request Quote	3-4 days ×

Imaging Lens Selector

Frequently Purchased Together

#02-147 - 203 x 254mm Sandblasted Glass

£45.05

#03-640 - 24" x 12", Breadboard

£313.65

#03-676 - 7.0 - 40.0 Optic Height, English Bar-Type Optic Holder

£84.15

#32-940 - 5mm Dia Enhanced Aluminum, 4-6λ Mirror

£21.68

Resources

Filter

How to Achieve Optimal Collimation with Fiber Optics

Collimated light is required for many fiber optic applications. Using the proper setup, fiber optic collimating lenses or ball lenses, and some optical know-how, you can achieve optimal collimation.

View Now

What are the advantages of Fiber Optic Illumination?

View Now

What is the difference between flexible, quartz and liquid fiber optic light guides?

View Now

What diameter beam will a light guide output?

View Now

Why do fiber optic light guides lose so much energy?

View Now

How do fiber optic light guides connect to fiber optic illuminators?

View Now

Ring Light Guide

View Now

Illumination Spot Size Calculator

View Now

What diameter beam will an optical fiber output?

View Now

What is the numerical aperture of a fiber?

View Now

Why do optical fibers lose so much energy?

View Now

What is the attenuation curve and how do I use it?

View Now

What is the difference between a jacketed and an unjacketed optical fiber?

View Now

What is the difference between single-mode and multimode fiber?

View Now

What is "cross-talk" and how can I eliminate it?

View Now

How do I cut and polish glass and plastic fibers?

View Now

Will optical fibers allow light to escape from the sides, like a neon sign?

View Now

What is the difference between coherent and incoherent fibers?

View Now

What does bend radius (or minimum radius of bend) mean?

View Now

I’m looking for the best way to maximize the amount of light from an LED into a fiber optic. What are the best options for coupling my LED and fiber?

View Now

My application calls for inexpensive, straight fiber bundles but the ones that you sell are bent. Is it possible to buy straight ones?

View Now

Bend Radius

View Now

Buffer Material

View Now

Cladding

View Now

Decibel (dB)

View Now

Fiber Jacket

View Now

Fiberscope

View Now

Optical Fiber

View Now

Packing Fraction

View Now

Common Illumination Types

Not sure which type of illumination you should use for your system? Learn more about the pros and cons of different illumination types at Edmund Optics.

View Now

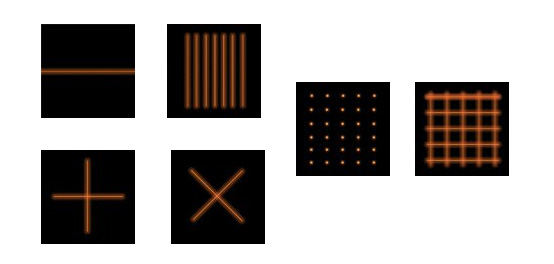

Using Structured Illumination

Machine vision systems heavily rely on illumination. Learn more about how structured illumination can maximize your system at Edmund Optics.

View Now

Spectrolight Mighty Light Product Overview

The Mighty Light is a self-contained, low-noise, tunable source of broadband visible and NIR light featuring a tungsten halogen lamp and output power up to 2W

View Now

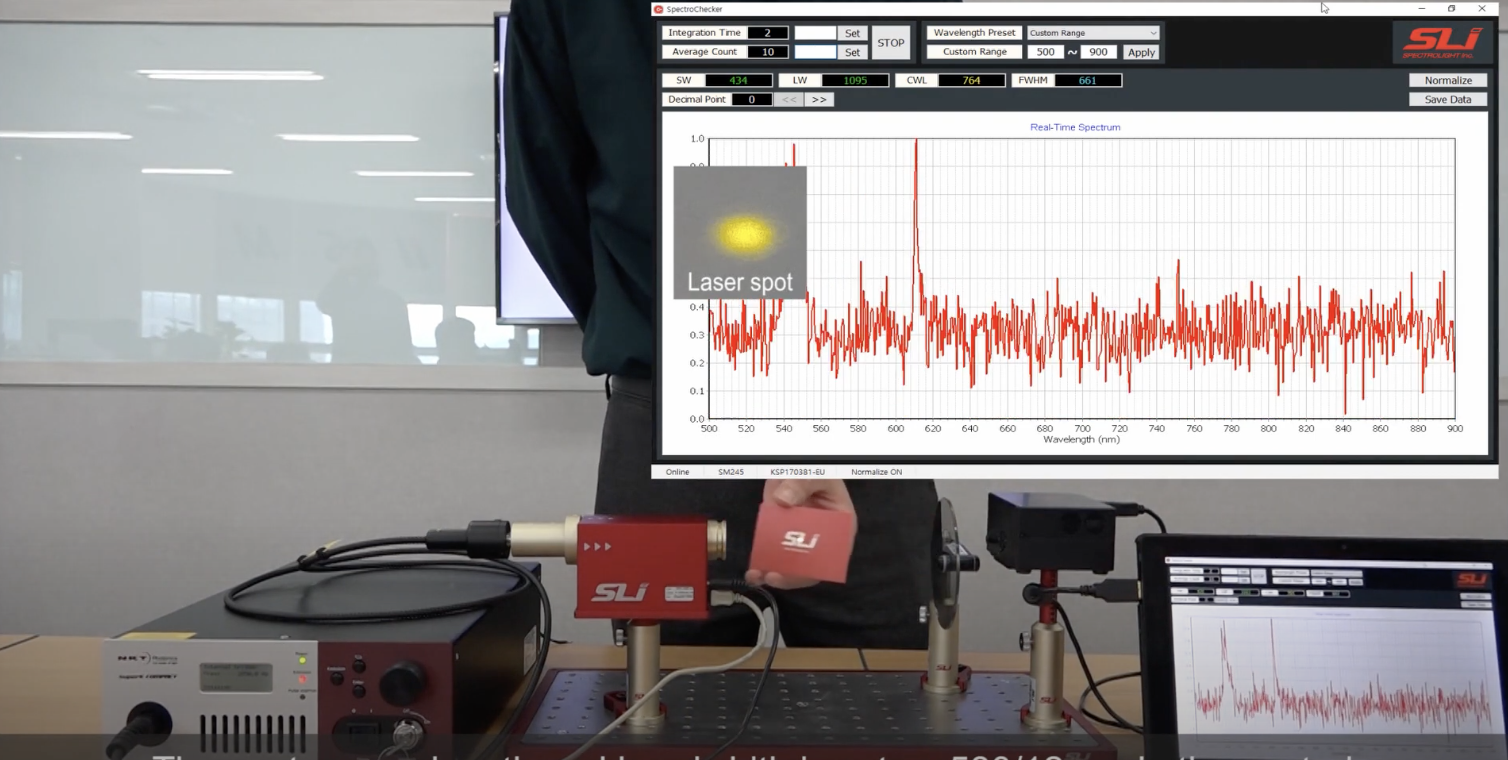

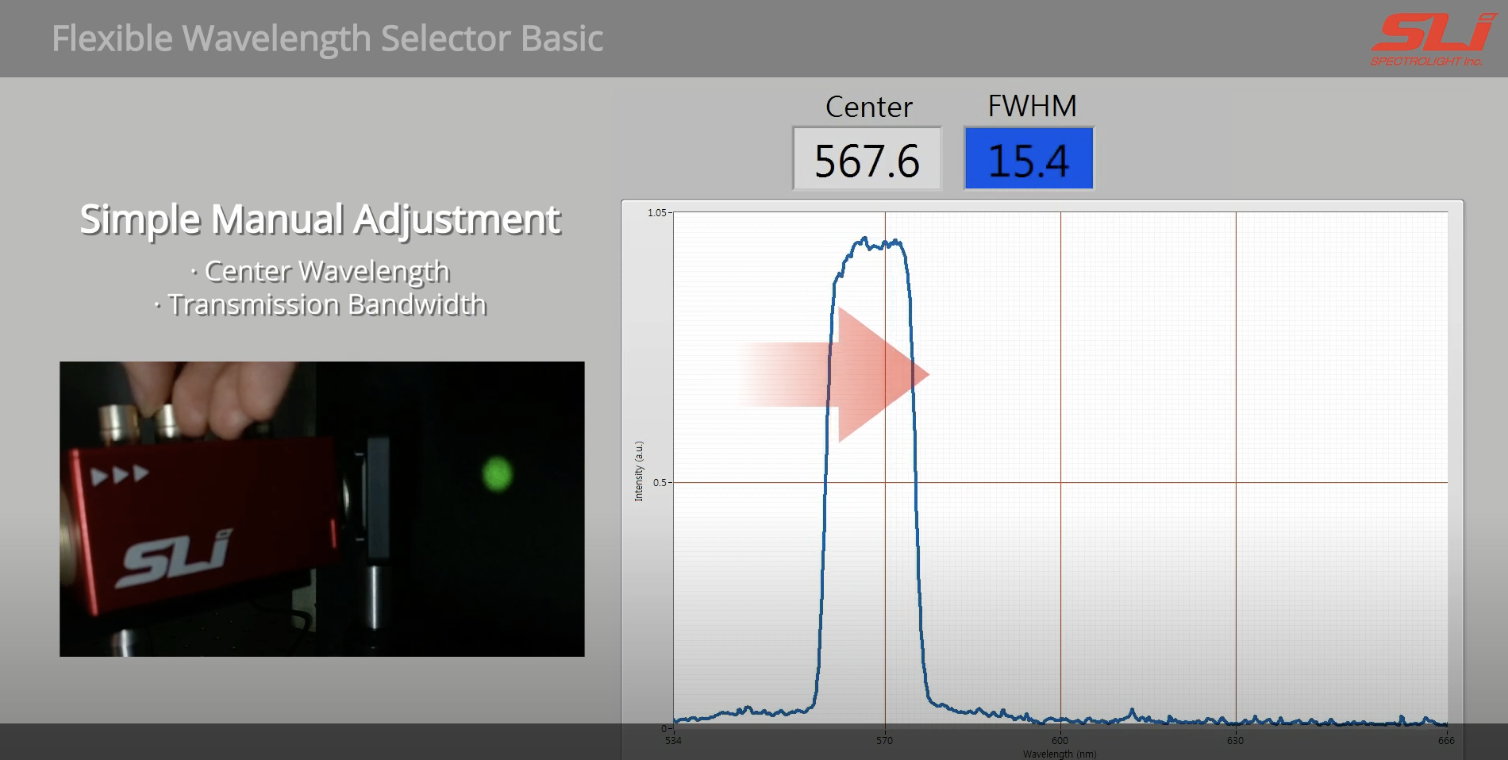

Spectrolight Flexible Wavelength Selector Basic Product Overview

Learn how to use a Spectrolight Flexible Wavelength Selector Basic to manually tune the emitted wavelength range of a Spectrolight Mighty Light Illuminator

View Now

Spectrolight Flexible Wavelength Selector Auto Product Overview

Learn how to use a Spectrolight Flexible Wavelength Selector Auto to automatically tune the emitted wavelength range of a Spectrolight Mighty Light Illuminator

View Now

What is ripple in illuminators and how does it affect my video system?

View Now

What is the advantage of high frequency illumination?

View Now

What are the advantages of LED Illumination?

View Now

Candela

View Now

Color Temperature

View Now

Diffuse Illumination

View Now

Directional Illumination

View Now

Glancing Illumination

View Now

Luminous Flux

View Now

Lux

View Now

Fiber Coupler Calculator

View Now

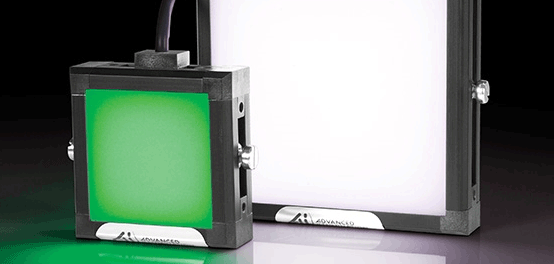

Silhouetting Illumination in Machine Vision

Choosing the right backlight illumination is critical for precise measurement and edge detection in machine vision applications. Learn about your best options!

View Now

How do I couple light into a fiber using a lens / ball lens?

View Now

How can I decrease the output angle of a fiber to achieve a more collimated beam with a lens / ball lens?

View Now

Does light entering a multimode fiber undergo a polarization change during propagation through the fiber? If so, can the emerging light be linearly polarized by placing a polarizer at the fiber’s output end?

View Now

Why is it necessary to collimate the laser diode before fiber-coupling?

View Now

Acceptance Angle

View Now

Successful Light Polarization Techniques

Are you looking for a solution to common imaging problems? Discover different polarization techniques to improve your image at Edmund Optics.

View Now

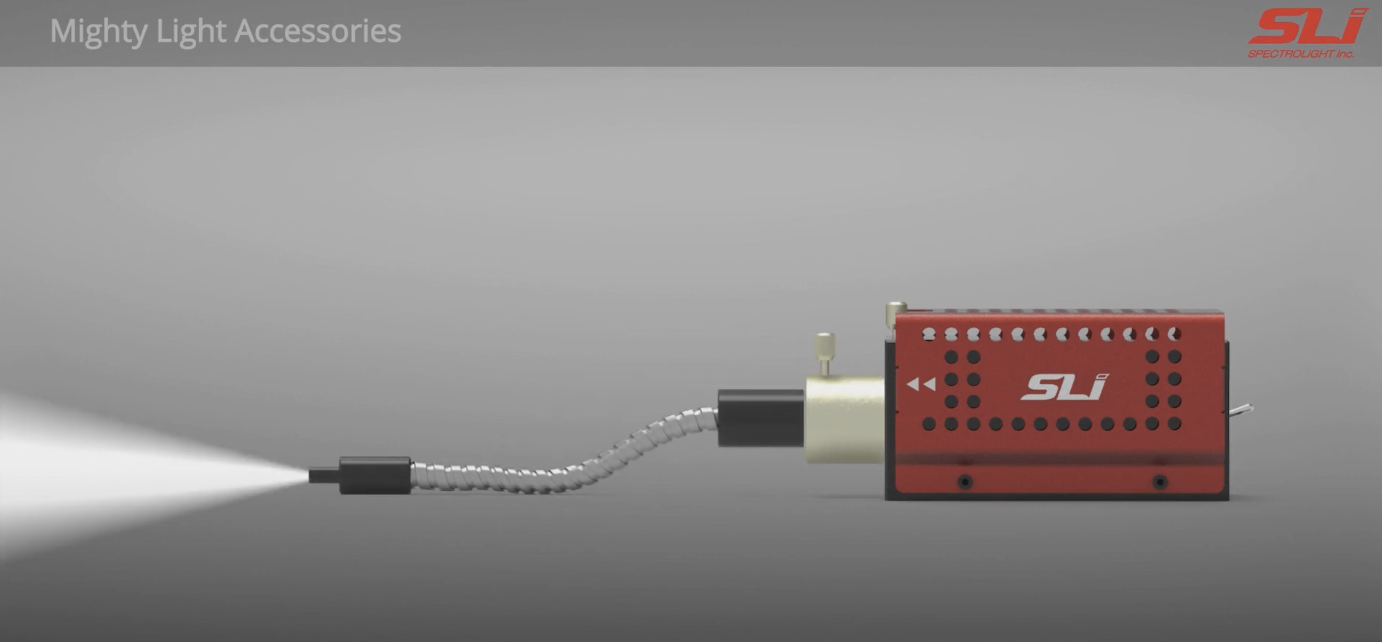

Spectrolight Mighty Light Accessories Overview

Modular accessories adapt the Spectrolight Mighty Light Illuminator for tuning to a specific wavelength, fiber coupling, collimating, homogenizing, and more

View Now

Best Practice #4 Light Up Your Life

Join Nick Sischka, Vision Solutions Specialist and member of EO's Imaging Team, as he reviews some best practices to consider when designing an imaging system

View Now

I am looking to prototype an illumination system. My objective is to use a small halogen filament bulb and end up with a beam of light. What would be the best lens or lens combination to give me this projected spot of light?

View Now

Do you have C-Mount components to make an in-line illumination assembly?

View Now

Axial Illumination

View Now

Fan Angle

View Now

Power Density

View Now

Total Internal Reflection (TIR)

View Now

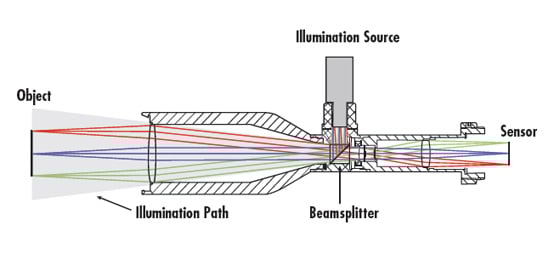

In-line Illumination

Are you designing a system and debating whether or not to use in-line illumination? Read more about the proper time to use in-line and comparisons at Edmund Optics.

View Now

Edmund Optics Imaging Lab 3.2: The W of Illumination Geometry

Learn how to specify imaging system components.

View Now

Edmund Optics Imaging Lab 3.3: Directional Illumination

Learn how to specify imaging system components.

View Now

Edmund Optics Imaging Lab 3.4: Directional Illumination of Ring Lights

Learn how to specify imaging system components.

View Now

Edmund Optics Imaging Lab 3.5: Backlights

Learn how to specify imaging system components.

View Now

Edmund Optics Imaging Lab 3.6: Dome Lights

Learn how to specify imaging system components.

View Now

Edmund Optics Imaging Lab 3.7: Line Lights

Learn how to specify imaging system components.

View Now

Best Practice #5 Color Matters

Join Nick Sischka, Vision Solutions Specialist and member of EO's Imaging Team, as he reviews some best practices to consider when designing an imaging system.

View Now

Illumination: The Third Pillar of Imaging System Design

View Now

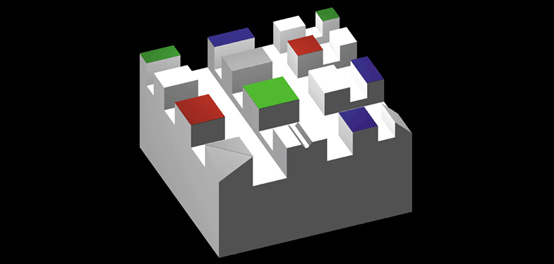

Understanding unique machine vision illumination methods

View Now

Can I use an illuminator alone to affect the spectral contrast of my image?

View Now

Monochromatic

View Now

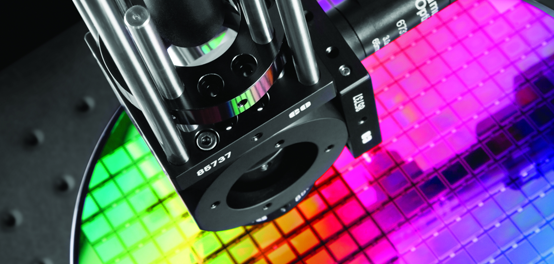

Understanding Collimation to Determine Optical Lens Focal Length
